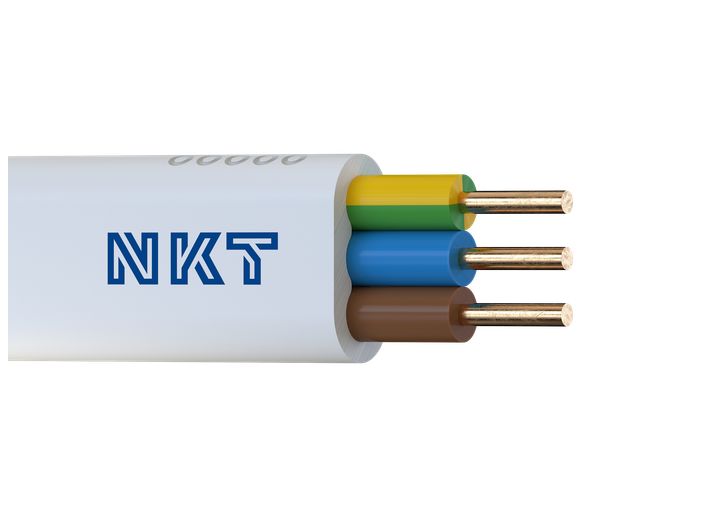

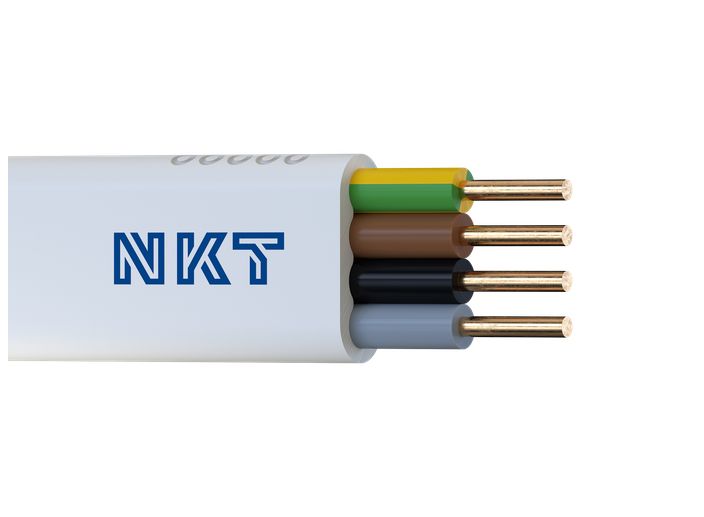

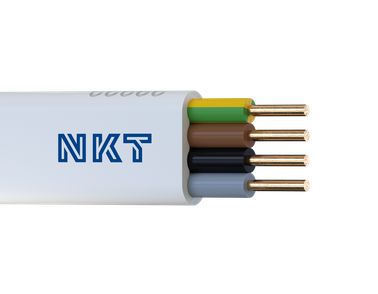

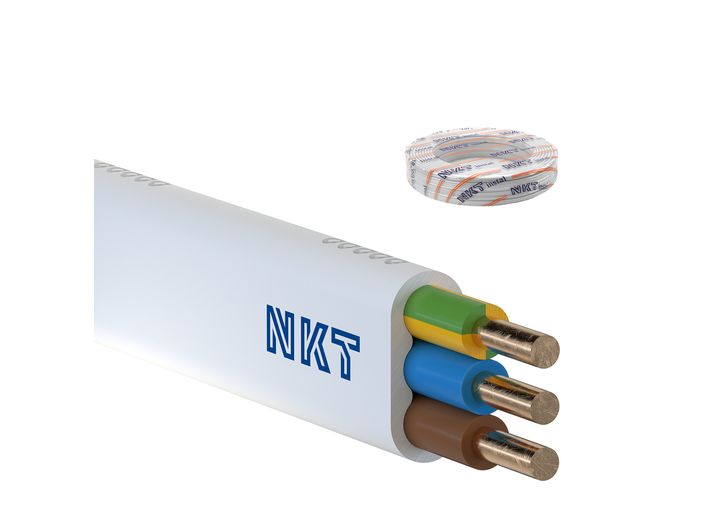

NKT instal YDYp 450/750 V

NKT instal YDYp 450/750 V is the best choice for fixed installations, offering exceptional reliability and fast installation. The vacuum extruded coating allows for easy handling of the cable and quick installation.

·       Voltage: 450/750 V

·       Temperature range: -40°C to +70°C (max. conductor temperature: +70°C, in case of short circuit: +160°C)

·       Min. laying temperature: -5°C

·       Min. bending radius: 4d,

·       Compliance: PN-E-90068, RoHS, REACH

Ideal for fixed installations indoors under, in and on plaster. Suitable for residential, commercial and industrial projects.

·       Conductor: Copper class 1

·       Insulation: PVC

·       Outer sheath: White PVC

·       Cross-section range: (2÷5)x(1÷10) mm²

·       Insulation thickness: from 0.8 mm to 1.1 mm

·       Outer sheath thickness: from 1.2 mm to 1.3 mm

·       Outer diameter: from 5.0x7.6 mm to 8.2x30.6 mm

·       Cable weight: from 63 kg/km to 703 kg/km

Upgrade your installations with NKT install YDYp 450/750 V for the highest quality and performance. Available below: data sheet, DoP declaration, CE declaration, EPD environmental declaration, certificate.
